ESL-SS-WR
Hygienic Emergency Stop Device with 4-Pole Contacts

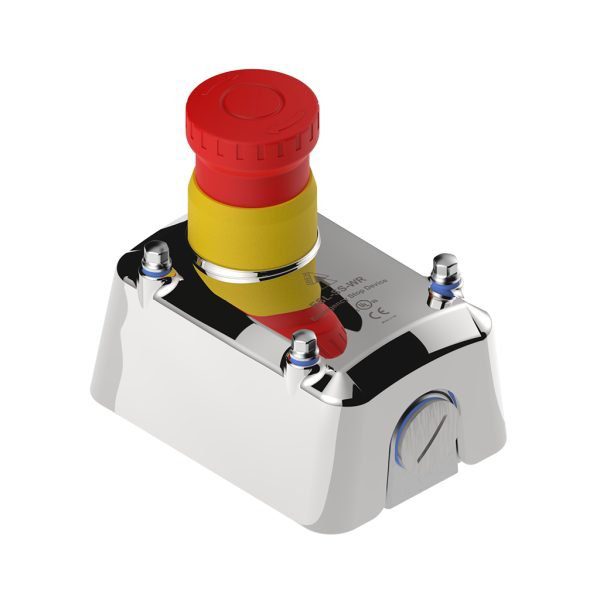

The ESL-SS-WR has been developed for use in food contact zones, providing reliable protection in food, beverage, and pharmaceutical applications. Its innovative design includes a single-piece lid enclosure with sloped edges that make it easy to clean and minimize the risk of liquids lingering on the surface after cleaning. The Ra10 mirror-polished surface is able to withstand the rigorous cleaning procedures that are standard in food manufacturing. Additionally, the ESL-SS-WR has a unique button design which is made of X-ray and metal detectable material.
- Body Material
- Mirror Polished 316 Grade Stainless Steel
- Ingress Protection
- IP69K
- Contacts
- 4NC, 3NC + 1NO or 2NC + 2NO
- Conduits
- M20 or ½” NPT
Informații privind UL508
Type 1 Enclosure Contact Blocks A300 230V/3A 120V/6A Wire range: 16AWG – 12AWG Stranded Copper Conductors Terminal Torque 7lb/in (0.8Nm) 24V LED (if fitted) powered by LVLC or Class 2 only.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 239001 | ESL-SS-WR M20 ‘2NC 2NO’ |
| 239002 | ESL-SS-WR 1/2″ NPT ‘2NC 2NO’ |
| 239003 | ESL-SS-WR M20 ‘3NC 1NO’ |
| 239004 | ESL-SS-WR 1/2″ NPT ‘3NC 1NO’ |
| 239005 | ESL-SS-WR M20 ‘4NC’ |
| 239006 | ESL-SS-WR 1/2″ NPT ‘4NC’ |
| 239300 | Rear Rubber Seal |
| 239301 | Stainless Steel Spacer Kit |
