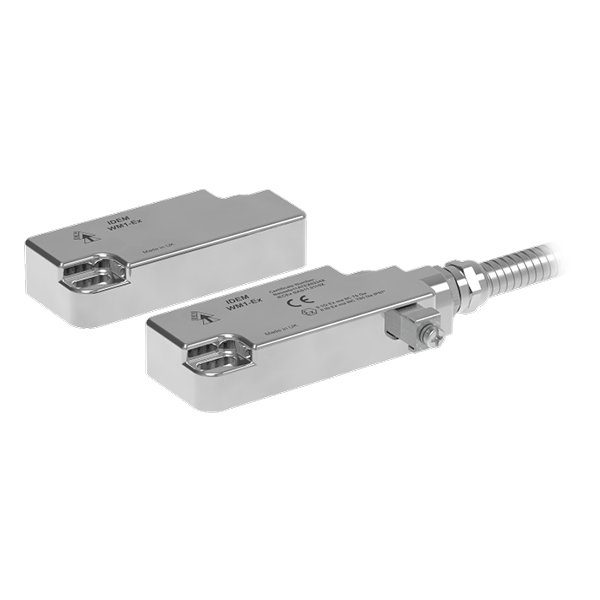

Non-Contact Safety Switch for Hazardous Areas, Zones 0/20 (WM1-Ex)
The WM1-Ex explosion proof safety interlock switch for use in hazardous environments are designed to interlock hinged, sliding or removable guard doors or hatches. All electrical components are fully encapsulated and encased with a stainless back plate to prevent tempering. The cable is protected with a stainless steel flexible conduit.
- Housing Material
- 316 Grade Stainless Steel, Mirror Polished
- Contacts
- 2NC + 1NO
- Contact Rating
- Up to 250V ac/dc 2.0A Max (Internally Fused)
- Zones
- 0, 20, 1, 21, 2, 22
- Ex Marking
- II 1G Ex ma IIC T6 Ga / II ID Ex ma IIIC T80 Da IP67*
Clasificare Ex (ATEX / IECEx)
II 1G Ex ma IIC T6 Ga
II 1D Ex ma IIIC T80C D
Notă importantă
Installation of all non-contact Ex Safety Switches must be in accordance with your machines risk assessment.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 900101 | WM1-Ex-SS 5M ‘2NC 1NO’ 230Vac/24Vdc |
| 900102 | WM1-Ex-SS 10M ‘2NC 1NO’ 230Vac/24Vdc |
