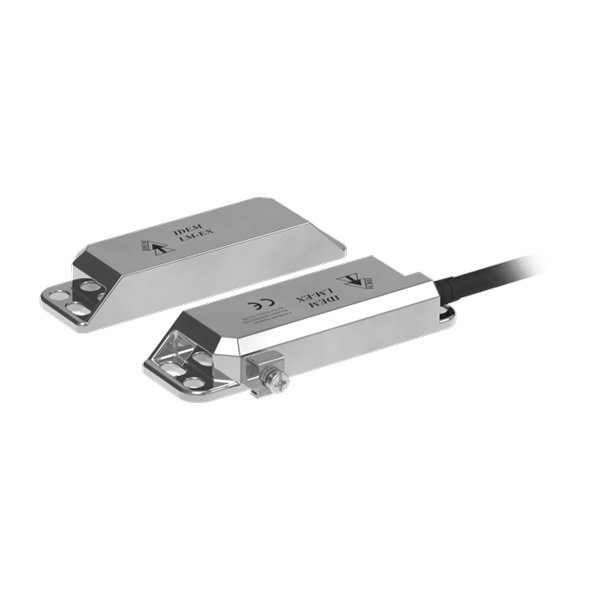

Non-Contact Safety Switch for Hazardous Areas (LM-Ex)
The LM-Ex explosion proof safety interlock switch for use in hazardous environments are designed to interlock hinged, sliding or removable guard doors or hatches. All electrical components are fully encapsulated and encased with a stainless back plate to prevent tempering.
- Housing Material
- 316 Grade Stainless Steel, Mirror Polished
- Contacts
- 2NC + 1NO
- Contact Rating
- Up to 250V ac/dc 2.0A Max (Internally Fused)
- Zones
- 1, 21, 2, 22
- Ex Marking
- II 2G Ex mb IIC T6 Gb / II 2D Ex mb IIIC T80 Db IP67*
Clasificare Ex (ATEX / IECEx)
II 2G Ex mb IIC T6 Gb
II 2D Ex mb IIIC T80C Db
Notă importantă
Installation of all non-contact Ex Safety Switches must be in accordance with your machines risk assessment.
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 904101 | LM-Ex SS 5M ‘2NC 1NO’ 230Vac/24Vdc |
| 904102 | LM-Ex SS 10M ‘2NC 1NO’ 230Vac/24Vdc |
| 904200 | LM-EX Spare Actuator |
