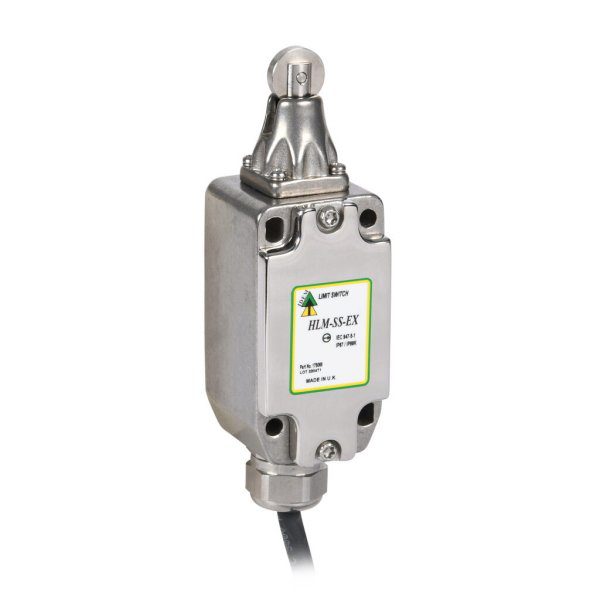

HLM-SS-RP-EX
Explosion Proof Safety Limit Switch with Roller Plunger
The HLM-SS-RP-EX has been designed to be mounted for position sensing of moving applications e.g. guard doors, conveyors, machine beds, elevators in atmospheres where the potential for explosion exists. The stainless steel 316 body can survive chemical and detergent washdowns, suitable for outdoor use in both hot and cold climates.
- Body Material
- Stainless Steel 316
- Ingress Protection
- IP69K
- Contacts
- 2-Pole or 4-Pole Ex Rated Contact Blocks
- Zones
- 1, 21, 2, 22
- Ex Marking
- Exd IIC T6 (-20 ≤ Ta ≤ +60C) Gb / Ex tb IIIC T85C (-20 ≤ Ta ≤ +60C) Db
Clasificare Ex (ATEX / IECEx)
ATEX Zones 1,21,2,22
II 2G Ex mb IIC T6 Gb
II 2D Ex mb IIIC T80C Db
Notă importantă
Comes with 3m of pre-wired cable (longer available on request).
Datele tehnice provin din documentația producătorului. Pentru dimensionarea funcției de siguranță consultați fișa tehnică oficială.
| Cod produs | Descriere |
|---|---|
| 175063 | HLM-SS Roller Plunger EX ‘1NC 1NO’- Stainless Steel |
| 175063-5M | HLM-SS Roller Plunger EX ‘1NC 1NO’ **5M CABLE** – Stainless Steel |
| 175064 | HLM-SS Roller Plunger EX ‘2NC’- Stainless Steel |
| 175065 | HLM-SS Roller Plunger EX ‘2NC 2NO’- Stainless Steel |
